Polyurethane Sheet — 80 & 90 Shore A · up to 80°C
Polyurethane Sheet — 80 & 90 Shore A · up to 80°C
Both open pre-filled with this product - add your OD, ID, length and quantity.

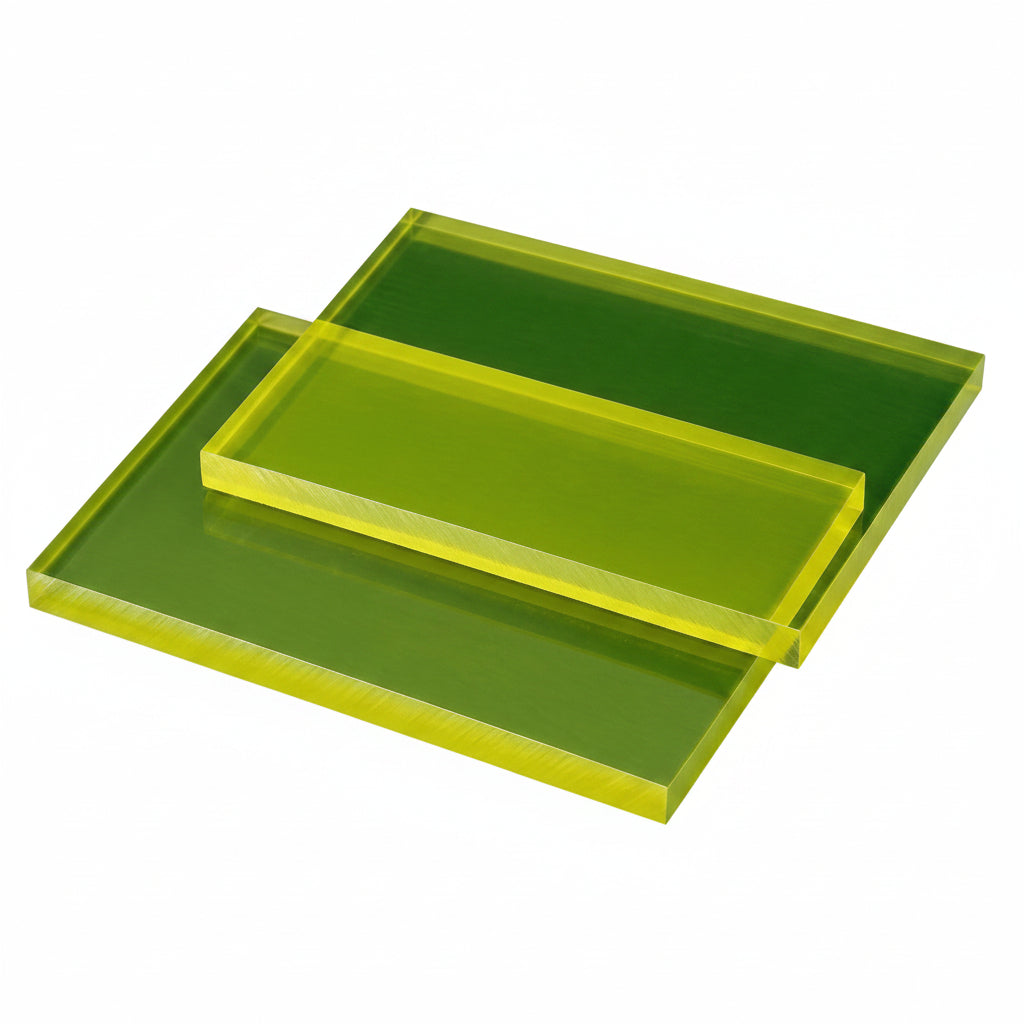

Polyurethane sheet in two hardness grades, 80 and 90 Shore A, cast on a polyether system. Excellent hydrolysis resistance — it holds its properties in water, humid air and wet process lines, where polyester-based polyurethane breaks down. Suitable for custom-cut gaskets, wear pads, diaphragms, liners and punching stock for industrial seal manufacture. Manufactured by Safwa Polymer, Badr City, Egypt.
Hardness, density, tensile, elongation, tear, abrasion and rebound are all measured in our own laboratory in Badr City.
Physical Properties — 80 Shore A
| Property | Value | Test Standard |
|---|---|---|
| Hardness | 80 ± 2 Shore A | ISO 7619-1 |
| Density | 1.11 g/cm³ | ISO 1183 |
| 100% Modulus | 5.5 MPa | ISO 37 |
| Tensile Strength | 19 MPa | ISO 37 |
| Elongation at Break | 530% | ISO 37 |
| Tear Strength | 53 kN/m | ISO 34-1 |
| Abrasion Loss | 150 mm³ | ISO 4649 (DIN 53516) |
| Rebound Resilience | 40% | ISO 4662 |
Physical Properties — 90 Shore A
| Property | Value | Test Standard |
|---|---|---|
| Hardness | 90 ± 1 Shore A | ISO 7619-1 |
| Density | 1.15 g/cm³ | ISO 1183 |
| 100% Modulus | 8.9 MPa | ISO 37 |
| Tensile Strength | 31 MPa | ISO 37 |
| Elongation at Break | 460% | ISO 37 |
| Tear Strength | 73 kN/m | ISO 34-1 |
| Abrasion Loss | 135 mm³ | ISO 4649 (DIN 53516) |
| Rebound Resilience | 30% | ISO 4662 |
Both grades: service temperature −30°C to +80°C.
Custom thickness and sheet dimensions available. Request a quote with your specifications.
