PTFE + 20% Carbon — Tube & Rod
PTFE + 20% Carbon — Tube & Rod
Both open pre-filled with this product - add your OD, ID, length and quantity.
PTFE filled with 20% carbon powder. Carbon fill delivers excellent compressive strength, good thermal conductivity, and low permeability. Less abrasive on mating surfaces than glass-filled PTFE — superior wear and friction performance, especially when combined with graphite. Suitable for high-pressure dynamic sealing and anti-static applications. Manufactured by Safwa Polymer, Badr City, Egypt.
Physical Properties
Hardness, density, tensile and elongation are measured in our own laboratory in Badr City.
| Property | Value | Test Standard |
|---|---|---|
| Hardness | 65 Shore D | ISO 868 |
| Density | 2.10 g/cm³ | ISO 1183 |
| Tensile Strength | 15 MPa | ASTM D4894 |
| Elongation at Break | 150% | ASTM D4894 |
| Thermal Conductivity | 0.60 W/mK | DIN 52612 † |
| Thermal Expansion Coeff. (25°C) | 9 × 10⁻⁵ K⁻¹ | ISO 7991 † |
| Min. Service Temperature | −200°C | — |
| Max. Service Temperature | +260°C | — |
† Raw material supplier datasheet value.

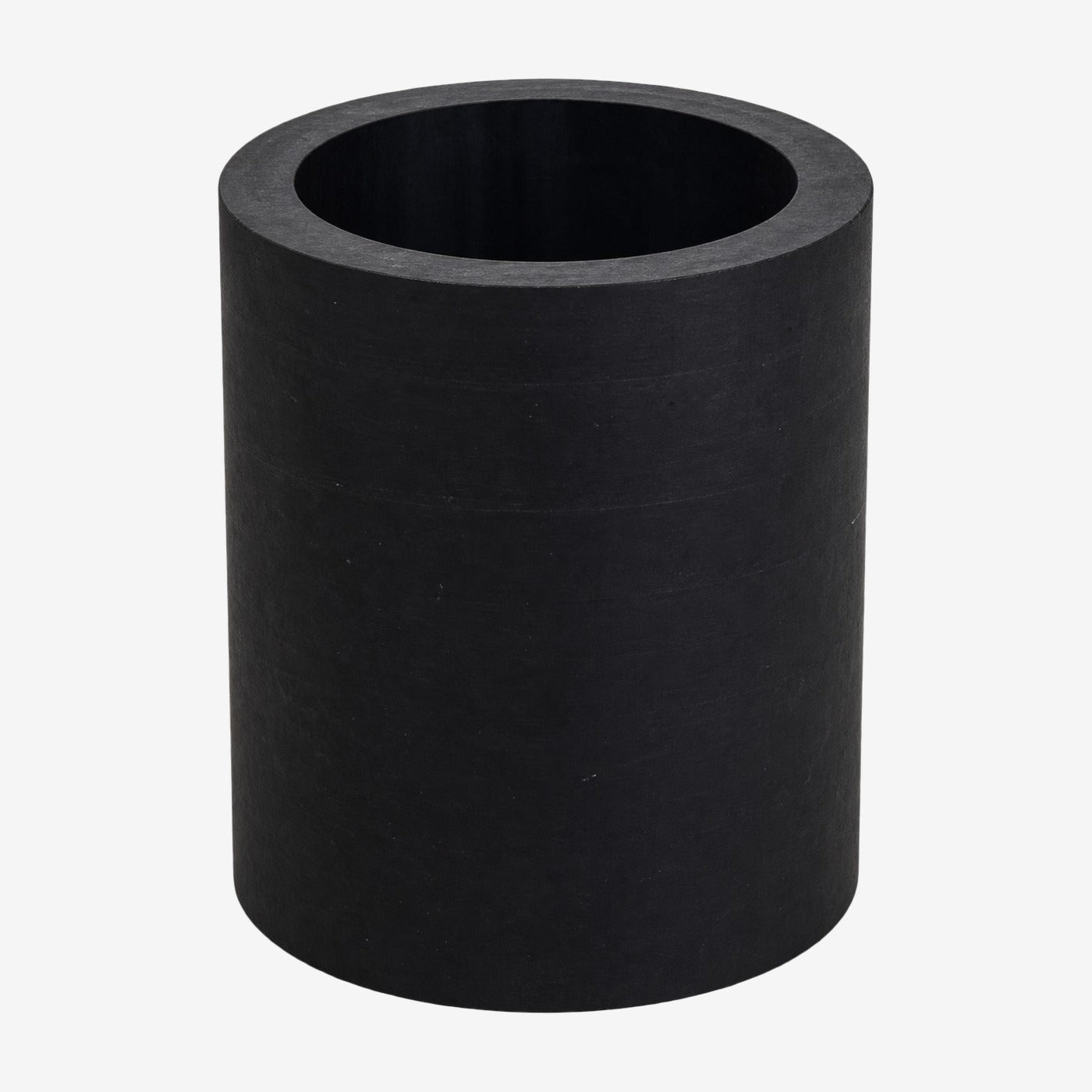

Supplied as hollow tube or solid rod. Custom OD, ID, and lengths available — for sufficient quantity we cut a mold to your exact dimensions. Request a quote with your dimensions.
